HID Global has released new versions of the Piccolino and the Clear Disc — embeddable RFID tags — and new on-metal versions of the IN Tag 200 and the IN Tag 500, industrial HF RFID tags.

.

Piccolino

.

.

The Piccolino range is composed by extremely small RFID tags designed for direct integration into custom form factor housings. Already available with a diameter of 9.5 mm featuring the NXP ICODE SLIX and SLIX-S chips, now these embeddable RFID tags come also in two smaller versions with a diameter of just 7.5 mm, with the same chips as the previously available products. Furthermore, a new 9,5 mm diameter version with Fujitsu MB89R118C chip has been unveiled. This chip provides 16 kbits of user memory and the capability to withstand gamma radiation making it possible to manufacture custom form factor tags and RFID-enable assets that have to undergo gamma sterilization.

.

.

Clear Disc

.

.

Already available in various LF versions, the Clear Disc tags can be provided now in HF versions with the following chips: NXP MIFARE Classic 1K, NXP MIFARE DESFire EV1 4K, Legic Prime MIM256 and Legic Prime MIM1024. These embeddable RFID tags have a diameter of 25 mm and are a cost-effective solution for RFID-enabling many types of assets.

.

.

.

.

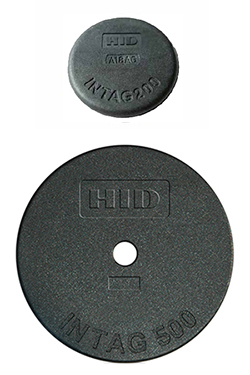

IN TAG 200 and IN Tag 500

.

.

.

.

The IN Tag 200 and the IN Tag 500, industrial HF RFID tags for asset tracking applications, are now available in new versions tuned to work also on metallic surfaces. These rugged tags feature an IP68 encasement and survive harsh environments and temperatures up to 140°C for 100 hours. Both tags feature the NXP ICODE SLIX chip. The IN Tag 200 has a diameter of 20 mm while the diameter of the IN Tag 500 measures 50 mm. Moreover, all products of the IN Tag family have recently obtained ATEX certification.

.

.

.

.

For additional information about these embeddable RFID tags and industrial RFID tags, please visit the HID Global website please login to the VeryFields RFID tags Database.
